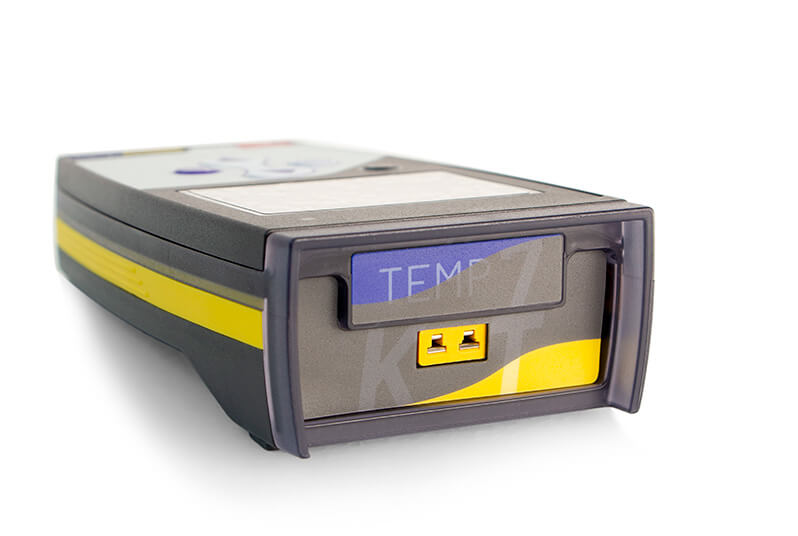

TEMP 7 K-T Vio without probe

Portable digital thermometer for K and T thermocouples.
Range -250 °C … +1350 °C

The Temp7 Vio is equipped with a large color backlit LCD display, for a clear view, even in poor external lighting conditions. The LED above the display indicates the status of the measurement and can signal any errors, visible from a distance. The self-diagnosis messages, combined with the guided procedures, make this instrument really easy and intuitive. It is possible to adjust the offset of thermocouple K and thermocouple T separately, in order to align the measurements in case of slight drift of the chain.

Thermometer suitable for countless applications in the industrial, pharmaceutical, and food sectors, where a wide range of measurement and speed are required, combined with good accuracy. The main feature is the reading speed: thanks to the thermocouple sensors, measurement stability can be reached within a few seconds. Great construction flexibility thanks to the different solutions to adapt the probe to the application: without handle, thin, foldable, etc. All instruments are supplied in a rigid carrying case, where the instrument and all accessories can be housed.

XS_TEMP_VIO.pdf
Manual
Certif

Data sheet

Feature Temp 7 Vio K/T
Accuracy ±0.1 % of reading / ±0.4 °C (above -150 °C) ±0.25 % of reading / ±1 °C (below -150 °C)
Power supply 3 x 1.5 V AA batteries
Automatic brightness control No
Dimension 185 x 85 x 45 mm
Display Colour LCD, backlit
Battery life > 550 hours
Data logger No
Hold function Yes
Min-Max function Yes
IP rating 56 IP
Stability indication Yes
Inputs Single ANSI connector
Thermocouple K input Yes
Name Temp 7 Vio K/T
Thermocouple K measuring range -200 … +1350 °C
Resolution (+200 … +999 °C) 1 °C
Resolution (-200,0 … -100,0 °C) 1 °C
Resolution (-99,9 … +199,9 °C) 0.1 °C
Working temperature 0 … +60 °C
Working humidity 10 … 95 %RH
