XS Sensor Pure Electrodes are combined pH electrodes with S7 screw head connectors. They feature a glass body and are specially designed for measuring low conductivity samples. The PURE PRO model is refillable with 3M KCl filling and suitable for samples with conductivity less than 0.2 µS, while the PURE PRO GEL model uses maintenance-free gel filling and is suitable for samples with conductivity less than 1 µS. These electrodes are resistant to pressure and temperature depending on the model.

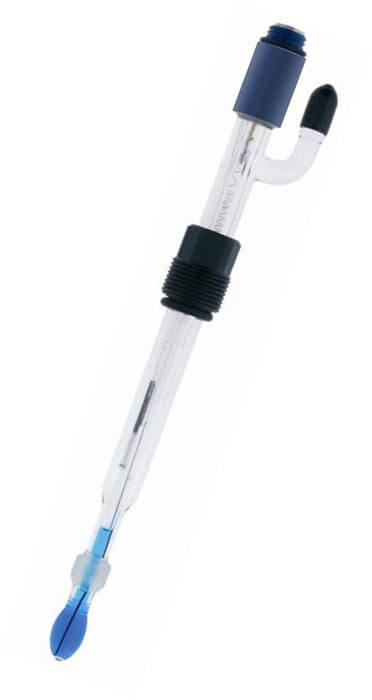

XS Sensor PURE PRO

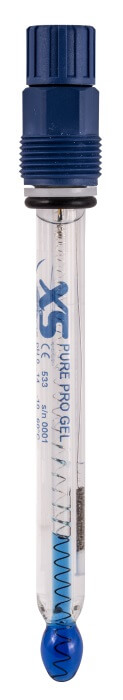

XS Sensor PURE PRO GEL
| Feature | XS Sensor PURE PRO | XS Sensor PURE PRO GEL |
|---|---|---|
| Description | Combined pH electrode, S7 screw head. Glass body. Length 120 mm. Refillable 3M KCl filler. For measurement of low conductivity samples (<0.2 µS) pH 0…14 – Temperature 0…40 °C | Combined pH electrode, S7 screw head. Glass body. Length 120 mm. Maintenance-free gel filling. For measurement of low conductivity samples (<1 µS) pH 0…14 – Temperature 0…60 °C |
| Connection | Screw head S7 PG 13.5 | Screw head S7 PG 13.5 |
| Diaphragm | Collar diaphragm | Ceramic |
| Body Diameter | 12 mm | 12 mm |
| Electrolyte | KCl 3M | Gel |
| Body Length | 120 mm | 120 mm |
| Total Length | 213 mm | 151 mm |
| Body Material | Glass | Glass |
| Name | Pure Pro | Pure Pro Gel |
| Number of Diaphragms | 1 | 3 |
| pH Measuring Range | 0 … 14 pH | 0 … 14 pH |
| Pressure Measuring Range | 0 … 0.5 bar | 0 … 6 bar |
| Temperature Measuring Range | -10 … +40 °C | -10 … +60 °C |
| Reference System | Encapsulated | Ag / AgCl Encapsulated |
| Zero Point | 0 ± 20 mV | 0 ± 20 mV |
