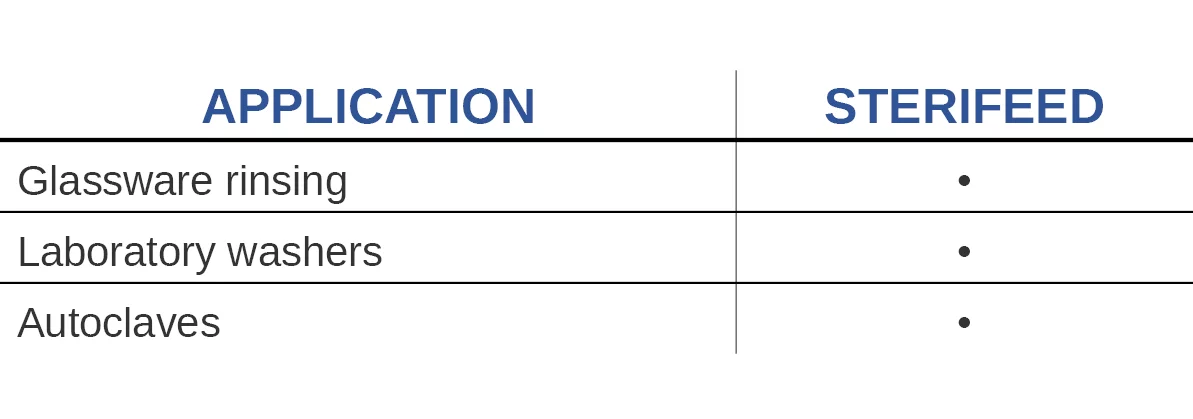

Compact Sterifeed is a water purification system that is specially designed to produce feed water for autoclaves and laboratory washing machines.
The pressurized water storage tank provides consistent water supply to an autoclave. Many autoclaves need pressurized purified water supply. Some autoclaves have priming pumps for purified water intake, but in case the water supply is not pressurized, an air gap may block the water flow. If the blockage occurs, the operation of the autoclave is not possible until the air is removed from the system. The pressurized water storage tank of the Sterifeed system eliminates any possibility of air gap formation and ensures smooth operation of an autoclave.
The Compact Sterifeed water purification system produces pure water that complies with reverse osmosis (RO) water requirements.
If the feed water does not meet specifications, additional pre-treatment solutions are available.
| Parameter | Sterifeed |
|---|---|
| Catalogue No. | CT-1002 |
| TDS rejection rate | ≥97% |
| Particles >0.22 μm | < 1/mL |
| Nominal flow, pure water (to storage tank) | 10 L/h |
| Dispense pressure (adjustable) | 100–180 kPa |
| Volumetric dispense | – |
| Dimensions (WxDxH), cm | 23x30x41 cm |
| System weight, kg | 12 kg |
| Operating weight, kg | 15 kg |
| Part number | Description | Comments |
|---|---|---|
| 10416 | Replacement pre-filter set |
| Part number | Description | Comments |
|---|---|---|
| 10112 | Pressurized water storage tank, 60 L | |
| 10114 | Pressurized water storage tank, 100 L | |
| 10603 | Attached dispenser | |
| 410226 | AquaStop | Water leakage protection system |
